c型铁芯
产品应用 Application:
· 光伏逆变器用非晶电抗器 Reactor cores for PV inverto
· 电动汽车DC/DC用滤波电感 Filter reactor of DC/DC in
EV
·高频电抗器 High frequency inductor
· 中高频变压器 Mid-high frequency transformer
产品特点 Characteristic:
·高导磁 High permeability
· 低损耗 Low core loss
· 易装配 Easy for coil assembling
·低直流衰减 Small permeability degradation
性能曲线 Magnetic Energy:

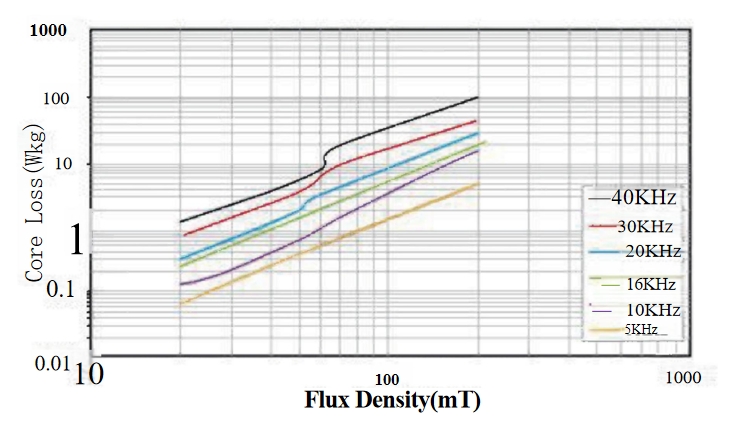

●不同频率下RC1516的铁损Ps-B 关系
RC1516 core loss Ps-B curve under different frequency

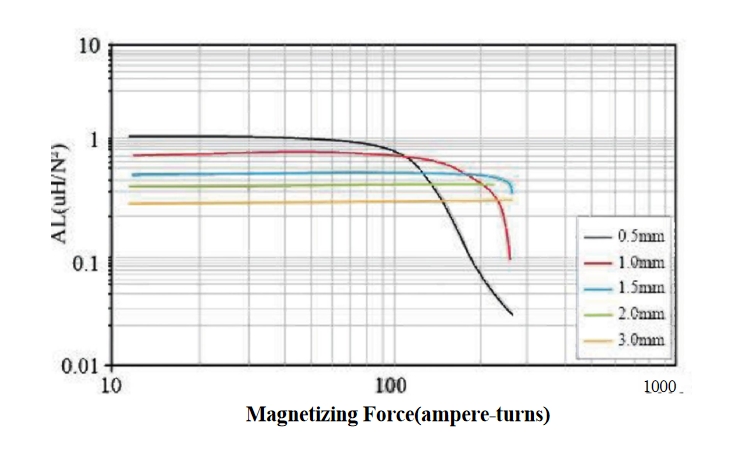

·RC1516 的 DC-bias 曲线
RC1516 DC-bias curve

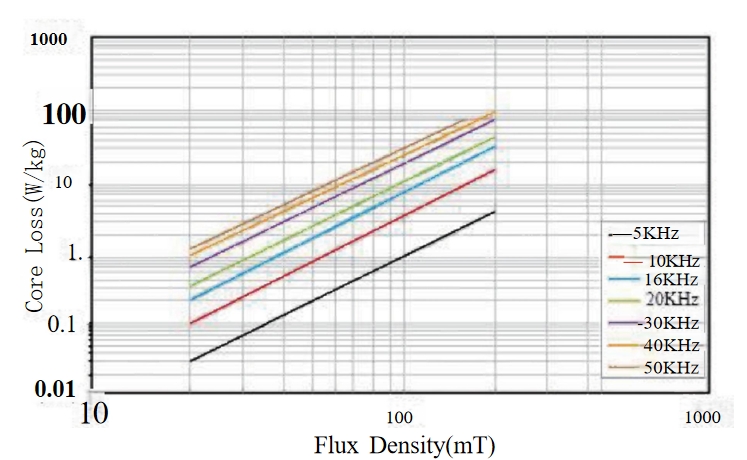

· 不同频率下RC1520 的铁损Ps-B 关 系
RC1520 core loss Ps-B curve under different frequency
·RC1520 的 DC-bias 曲 线
RC1520 DC-bias curve
